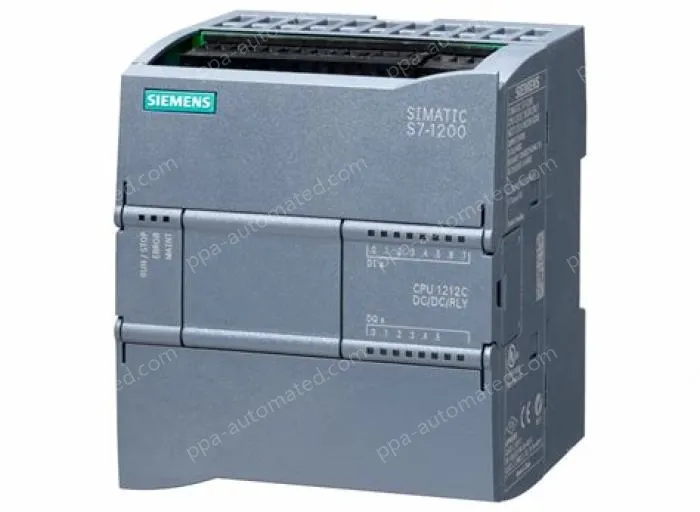

6ES7212-1HE40-0XB0 CPU 1212C, DC/DC/RELAY, 8DI/6DO/2AI

Artikelnummer

6ES7212-1HE40-0XB0

		SIMATIC S7-1200, CPU 1212C, COMPACT CPU, DC/DC/RLY, ONBOARD I/O: 8 DI 24V DC; 6 DO RELAY 2A; 2 AI 0 - 10V DC, POWER SUPPLY: DC 20.4 - 28.8 V DC, PROGRAM/DATA MEMORY: 50 KB
General information
Engineering with
● Programming package		STEP 7 V13 or higher
Display
with display		No
Supply voltage
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Load voltage L+
● Rated value (DC)		24 V
● permissible range, lower limit (DC)		20.4 V
● permissible range, upper limit (DC)		28.8 V
Input current
Current consumption (rated value)		400 mA; Typical
Inrush current, max.		12 A; at 28.8 V
Encoder supply
24 V encoder supply
● 24 V		Permissible range: 20.4V to 28.8V
Output current
Current output to backplane bus (DC 5 V), max.		1 000 mA; Max. 5 V DC for SM and CM
Power losses
Power loss, typ.		9 W
Memory
Type of memory		EEPROM
Usable memory for user data		50 kbyte
Work memory
● Integrated		50 kbyte
● expandable		No
Load memory
● Integrated		1 Mbyte
● Plug-in (SIMATIC Memory Card), max.		2 Gbyte; with SIMATIC memory card
Backup
● present		Yes; maintenance-free
● without battery		Yes
CPU processing times
for bit operations, typ.		0.085 µs; / Operation
for word operations, typ.		1.7 µs; / Operation
for floating point arithmetic, typ.		2.3 µs; / Operation
CPU-blocks
Number of blocks (total)		DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used
OB
● Number, max.		Limited only by RAM for code
Data areas and their retentivity
retentive data area in total (incl. times, counters, flags), max.		10 kbyte
Flag
● Number, max.		4 kbyte; Size of bit memory address area
Address area
I/O address area
● Inputs		1 024 byte
● Outputs		1 024 byte
Process image
● Inputs, adjustable		1 kbyte
● Outputs, adjustable		1 kbyte
Hardware configuration
Number of modules per system, max.		3 comm. modules, 1 signal board, 2 signal modules
Time of day
Clock
● Hardware clock (real-time clock)		Yes
● Deviation per day, max.		+/- 60 s/month at 25 °C
● Backup time		480 h; Typical
Digital inputs
Number of digital inputs		8; Integrated
● of which, inputs usable for technological functions		6; HSC (High Speed Counting)
integrated channels (DI)		8
m/p-reading		Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max.		8
Input voltage
● Rated value (DC)		24 V
● for signal "0"		5 V DC at 1 mA
● for signal "1"		15 VDC at 2.5 mA
Input current
● for signal "1", typ.		1 mA
Input delay (for rated value of input voltage)
for standard inputs
— Parameterizable		0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms
— at "0" to "1", min.		0.1 µs
— at "0" to "1", max.		20 ms
for interrupt inputs
— Parameterizable		Yes
for counter/technological functions
— Parameterizable		Single phase: 3 @ 100 kHz & 1 @ 30 kHz, differential: 3 @ 80 kHz & 1 @ 30 kHz
Cable length
● Cable length, shielded, max.		500 m; 50 m for technological functions
● Cable length unshielded, max.		300 m; For technological functions: No
Digital outputs
Number of digital outputs		6; Relays
integrated channels (DO)		6
short-circuit protection		No; to be provided externally
Switching capacity of the outputs
● with resistive load, max.		2 A
● on lamp load, max.		30 W with DC, 200 W with AC
Output delay with resistive load
● "0" to "1", max.		10 ms; max.
● "1" to "0", max.		10 ms; max.
Switching frequency
● of the pulse outputs, with resistive load, max.		1 Hz
Relay outputs
● Max. number of relay outputs, integrated		6
● Number of relay outputs		6
● Number of operating cycles, max.		mechanically 10 million, at rated load voltage 100,000
Cable length
● Cable length, shielded, max.		500 m
● Cable length unshielded, max.		150 m
Analog inputs
Number of analog inputs		2
Integrated channels (AI)		2; 0 to 10 V
Input ranges
● Voltage		Yes
Input ranges (rated values), voltages
● 0 to +10 V		Yes
● Input resistance (0 to 10 V)		≥100k ohms
Cable length
● Cable length, shielded, max.		100 m; twisted and shielded
Analog outputs
Number of analog outputs		0
Analog value creation
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.		10 bit
● Integration time, parameterizable		Yes
● Conversion time (per channel)		625 µs
Encoder
Connectable encoders
● 2-wire sensor		Yes
1st interface
Interface type		PROFINET
Physics		Ethernet
Isolated		Yes
Automatic detection of transmission speed		Yes
Autonegotiation		Yes
Autocrossing		Yes
Functionality
● PROFINET IO Device		Yes
● PROFINET IO Controller		Yes
PROFINET IO Controller
● Prioritized startup supported
— Number of IO Devices, max.		16
Communication functions
S7 communication
● supported		Yes
● as server		Yes
● As client		Yes
Open IE communication
● TCP/IP		Yes
● ISO-on-TCP (RFC1006)		Yes
● UDP		Yes
Web server
● supported		Yes
● User-defined websites		Yes
Test commissioning functions
Status/control
● Status/control variable		Yes
● Variables		Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Forcing
● Forcing		Yes
Diagnostic buffer
● present		Yes
Traces
● Number of configurable Traces		2; Up to 512 KB of data per trace are possible
Integrated Functions
Number of counters		6
Counter frequency (counter) max.		100 kHz
Frequency meter		Yes
controlled positioning		Yes
PID controller		Yes
Number of alarm inputs		4
Galvanic isolation
Galvanic isolation digital inputs
● Galvanic isolation digital inputs		500V AC for 1 minute
● between the channels, in groups of		1
Galvanic isolation digital outputs
● Galvanic isolation digital outputs		Relays
● between the channels		No
Permissible potential difference
between different circuits		500 V DC between 24 V DC and 5 V DC
EMC
Interference immunity against discharge of static electricity
● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2		Yes
— Test voltage at air discharge		8 kV
— Test voltage at contact discharge		6 kV
Interference immunity to cable-borne interference
● Interference immunity on supply lines acc. to IEC 61000-4-4		Yes
● Interference immunity on signal lines acc. to IEC 61000-4-4		Yes
Surge immunity
● on the supply lines acc. to IEC 61000-4-5		Yes
Immunity against conducted interference induced by high-frequency fields
● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6		Yes
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas		Yes; Group 1
● Limit class B, for use in residential areas		Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Standards, approvals, certificates
CE mark		Yes
UL approval		Yes
cULus		Yes
RCM (formerly C-TICK)		Yes
FM approval		Yes
Marine approval
● Marine approval		Yes
Ambient conditions
Operating temperature
● Min.		-20 °C
● max.		60 °C
● horizontal installation, min.		-20 °C
● horizontal installation, max.		60 °C
● vertical installation, min.		-20 °C
● vertical installation, max.		50 °C
Storage/transport temperature
● Min.		-40 °C
● max.		70 °C
Air pressure
● Operation, min.		795 hPa
● Operation, max.		1 080 hPa
● Storage/transport, min.		660 hPa
● Storage/transport, max.		1 080 hPa
Relative humidity
● Operation, max.		95 %; no condensation
Vibrations
● Vibrations		2G wall mounting, 1G DIN rail
● Operation, checked according to IEC 60068-2-6		Yes
Shock test
● checked according to IEC 60068-2-27		Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging)		0.3 m; five times, in dispatch package
Temperature
— Permissible temperature range		-40 °C to +70 °C
Relative humidity
— Permissible range (without condensation) at 25 °C		95 %
Mechanical and climatic conditions during operation
Climatic conditions in operation
Temperature
— Min.		-20 °C
— max.		60 °C
Air pressure acc. to IEC 60068-2-13
— Permissible air pressure		1080 to 795 hPa
— Permissible operating height		-1000 to 2000 m
Pollutant concentrations
— SO2 at RH < 60% without condensation		S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
Configuration
programming
Programming language
— LAD		Yes
— FBD		Yes
— SCL		Yes
Cycle time monitoring
● can be set		Yes
Dimensions
Width		90 mm
Height		100 mm
Depth		75 mm
Weights
Weight, approx.		385 g
