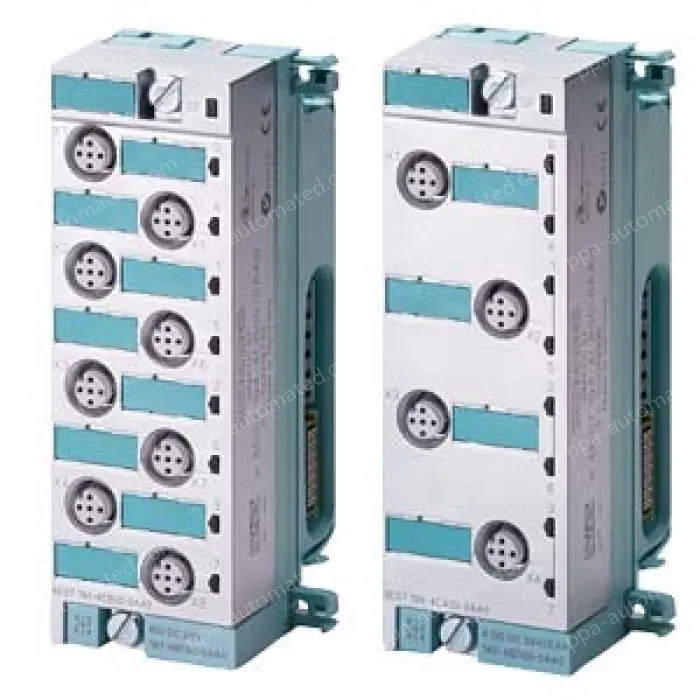

Digital expansion modules

Ship to Stock in: Warehouse

★★★★★4.91720 Reviews

Wholesale Price

Model: 6ES7141-4BF00-0AA0

Order No:

SKU: 10000003889001

Category: ET200

Brand: SIEMENS

Size: 7.20CM, 13.60CM, 6.80CM,0.00cm

Weight: 0.00KG

Product Selection Engineer: wuShengpeng

Leading

Customer Service Guarantee

100% secure payment

Quality Guarantee

No Reason Returns

You May Also Like

Selling List

Description Reviews

6ES7141-4BF00-0AA0 ET200PRO, EM 8DI 24V DC

Artikelnummer

6ES7141-4BF00-0AA0

		SIMATIC DP, ELECTRONIC MODULE FOR ET200PRO 8 DI DC 24V, MODULE DIAGNOSTICS; INCLUSIVE BUS MODULE CONNECTING MODULE IO 6ES7194-4..00-0AA0 MUST BE ORDERED SEPERATELY
FH technology
Module for failsafe applications		No
Supply voltage
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes; Against destruction; encoder power supply outputs applied with reversed polarity
Input current
from backplane bus 3.3 V DC, max.		20 mA
from supply voltage 1L+, max.		20 mA
Encoder supply
Number of outputs		8
short-circuit protection		Yes; per module, electronic
Output current
● up to 55 °C, max.		1 A
Power losses
Power loss, typ.		2.5 W
Address area
Occupied address area
● Inputs		1 byte
Digital inputs
Number of digital inputs		8
Input characteristic curve in accordance with IEC 61131, type 1		Yes
Input characteristic curve in accordance with IEC 61131, type 2		No
Number of simultaneously controllable inputs
all mounting positions
— up to 55 °C, max.		8
Input voltage
● Type of input voltage		DC
● Rated value (DC)		24 V
● for signal "0"		-3 to +5V
● for signal "1"		13 to 30 V
Input current
● for signal "1", typ.		7 mA
Input delay (for rated value of input voltage)
for standard inputs
— Parameterizable		No
— at "0" to "1", min.		1.2 ms
— at "0" to "1", max.		4.8 ms
— at "1" to "0", min.		1.2 ms
— at "1" to "0", max.		4.8 ms
Cable length
● Cable length, shielded, max.		30 m
● Cable length unshielded, max.		30 m
Encoder
Connectable encoders
● 2-wire sensor		Yes
— Permissible quiescent current (2-wire sensor), max.		1.5 mA
Isochronous mode
Isochronous operation (application synchronized up to terminal)		No
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic functions		Yes
● Diagnostic information readable		Yes
● Short circuit		Yes; Sensor supply to M; module by module
Diagnostics indication LED
● Group error SF (red)		Yes
● Status indicator digital input (green)		Yes; Per channel
Parameter
Diagnosis: short circuit		Sensor supply to M; module by module
Galvanic isolation
between backplane bus and all other circuit components		Yes
Galvanic isolation digital inputs
● between the channels		No
● between the channels and the backplane bus		Yes
Permissible potential difference
between different circuits		75 VDC / 60 VAC
Isolation
Isolation checked with		500 V DC
Degree and class of protection
Degree of protection to EN 60529
● IP65		Yes
● IP66		Yes
● IP67		Yes
Dimensions
Width		45 mm
Height		130 mm
Depth		35 mm
Weights
Weight, approx.		140 g
last modified:		13.10.2014

6ES7141-4BF00-0AA0

SIMATIC DP, Electronic module for ET 200 PRO 8 DI 24 V DC, Module diagnostics; incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately

★ ★ ★ ★ ★
