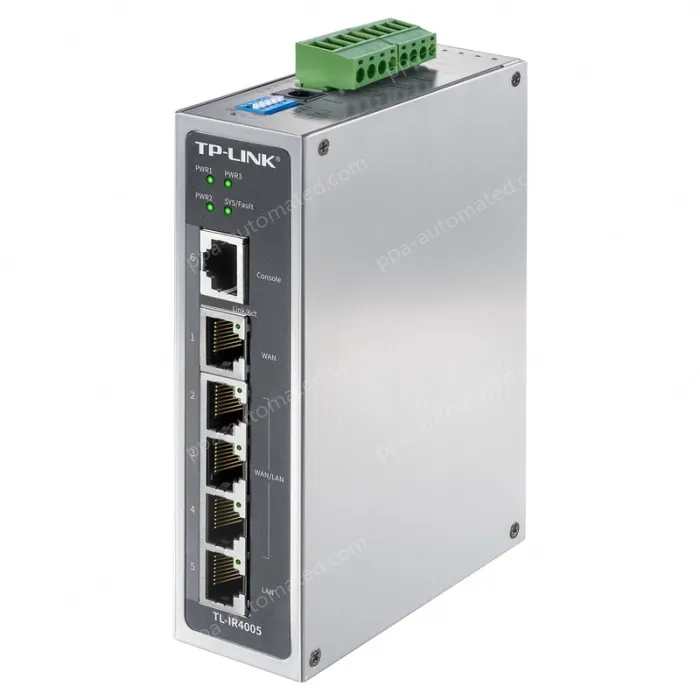

TL-IR4005 is a TP-LINK industrial router designed for industrial environments. Provides 5 Gigabit adaptive Ethernet interfaces.
- Provide 5 x 10/100/1000M adaptive RJ45 ports
- Industrial working temperature: -40°C~75°C
- Wide voltage input: 9.6V~60VDC
- Multiple installation methods: rail installation + wall mounting
- IP30 protection: reduce the impact of dust
- Provides a wealth of security policies
- Cloud management and O&M are supported
- Three-way power input, redundant backup, greatly improve the reliability of product power supply
- EMS has a high level of protection, and is not afraid of all kinds of harsh environments
- *The industrial router does not come with a power supply at the factory, so if you need to use the power supply, please purchase it separately
- It is recommended to buy our industrial grade power supply: TL-IP75-24 or TL-IP75D-24
-40°C~75°C working temperature design, no fear of extreme temperatures
TL-IR4005 is designed in strict accordance with the working temperature of -40°C~75°C, selects industrial-grade devices, and adopts natural heat dissipation mode to ensure that the equipment works stably for a long time in this temperature range and meets all kinds of harsh environments.
Industrial-grade protection design
High-standard electromagnetic anti-interference protection design, suitable for various harsh electromagnetic environments such as electric power and industrial plants.
Aluminum alloy shell and electroless nickel gold PCB board greatly improve the anti-corrosion performance of the equipment.
The housing can be protected by IP30 to reduce the impact of dust on the normal operation of the equipment.
9.6V~60VDC wide voltage input, multiple power protection
It supports simultaneous access of three power supplies, and the power supply is redundant to ensure the uninterrupted work of the equipment.
It supports a wide voltage input of 9.6V~60VDC, and is suitable for various industrial power supplies.
Three types of power protection are provided to greatly improve the reliability of power supply to the switch.
Featured devices
The PCB board is made of electroless nickel gold plate, which has high corrosion resistance, oxidation resistance, and excellent electrical properties.
Select high-specification and long-life Japanese capacitors to greatly improve the service life of the product.
The circuit design of the highly redundant system avoids the sudden change of the external environment from affecting the normal operation of the equipment.
TP-LINK's rigorous industrial-grade production and testing process is adopted to effectively release the electrical stress of components and greatly improve the reliability of equipment.
Compact body design, metal shell, efficient heat dissipation
The size of the fuselage is only 137mm*100mm*38mm, which can be very convenient to place in a compact work cabinet, and the high thermal conductivity aluminum alloy shell has better heat dissipation effect.
DIN rail installation is easy and flexible
The TL-IR4005 can be easily DIN rail mounted and wall-mounted, and can be flexibly selected according to the needs of the installation method, making the use of industrial-grade Ethernet switches simple and reliable.
Excellent device compatibility
TP-LINK has more than 100 million Ethernet switch devices running all over the world, serving all walks of life, ensuring that TP-LINK Ethernet switches can be compatible with all kinds of network equipment and production equipment.
Port interrupt alarm, real-time monitoring of port working status
The TL-IR4005 provides port alarm function to monitor the working status of the port in real time. Once the port is disconnected, the alarm output of the terminal block will output an alarm signal, and the user will be alerted by the user's external alarm to the occurrence of port interruption.
Technical Specifications
| Protocol Standards |
|
| Port morphology |
|
| Light |
|
| Power input |
|
| DIP |
|
| Structure |
|
| Temperature |
|
| Humidity |
|
| Certification standards _EMS |
|
Software Features
| Network protocols |
|
| Basic settings |
|
| AP management |
|
| Access mode |
|
| Transmission control |
|
| ARP protection |
|
| Attack protection |
|
| Access control |
|
| Behavior control |
|
| VPN |
|
| Certification management |
|
| System services |
|
| Manage maintenance |
|
| Cloud management |
|
| SNMP |
|
Other
| Packing accessories |
|
